Performance
Single Stage achieves Class D rain defence and 64% open area. Two Stage achieves Class A 100% rain defence, ensuring optimal airflow and weather protection.
Aesthetics
Features 100mm pitch aluminium louvres in single and two-stage options. Powder-coated or anodised finishes, available as prefabricated panels or continuous systems.
Design
Ideal for mechanical plant rooms and commercial screening. Engineered for blade spans up to 1000mm and lengths up to 6500mm, compliant with NCC and Australian Standards.
Versatility
Specify single-stage for airflow-focused areas and two-stage for maximum rain defence, maintaining a cohesive louvre aesthetic across the project.

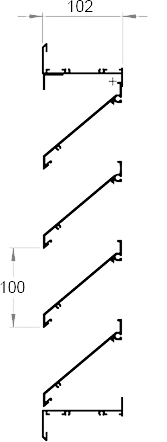

Single stage, extruded aluminium fixed louvres
Average Rain Defence
Effective Rain Defence
Aerodynamics
Free Open Area
Coefficient of Discharge
Effective Aerodynamic Area
Depth
Pitch
Max span
Weight
Two-stage, extruded aluminium fixed louvres
Selecting the right louvreinvolves these steps.
To select the right performance louvre for your project design: 1) The mechanical engineer defines the required volume flow rate (m ³/s) for mechanical plant or passive ventilation dictated by the mechanical equipment behind the louvres. 2) Mechanical engineer defines the maximum allowable pressure drop across a louvre before fan performance suffers. 3) The architect and engineer then balance the louvre façade area (m2) against the pressure drop requirements, required rain resistance, and aesthetics to get a mutually workable outcome. 4) Finally you can then specify the louvre that works for your design aesthetically and achieves the performance classification required for both aerodynamics and rain defence using the Australian Standard AS4740:2000 classification system. Please note: louvre performance is proportional to the design airflow. For example, the higher the air velocity, the lower the rain defence.
Residential
Public
Projects will be delivered in a timely manner, be on specification, engineered to Australian standards and finished to the highest quality.
Should you require samples, we offer up to 3 product samples free of charge. Special colour requests POA.
Reach out today to discuss your facade solution requirements; we would love to hear from you.
