Performance
Provides Class A to Class C rain defence with Class 2 to Class 4 aerodynamics. Equipped with a weather lip for enhanced protection against rain.
Aesthetics
Ideal for plant rooms, air intakes, and exhausts. Nexus Series® includes standard, drainable, and two-stage louvres for tailored performance in various commercial and industrial applications.
Design
Designed for areas with high weather exposure, ensuring maximum airflow and rain defence. Suitable for large industrial louvre banks and cyclonic conditions.

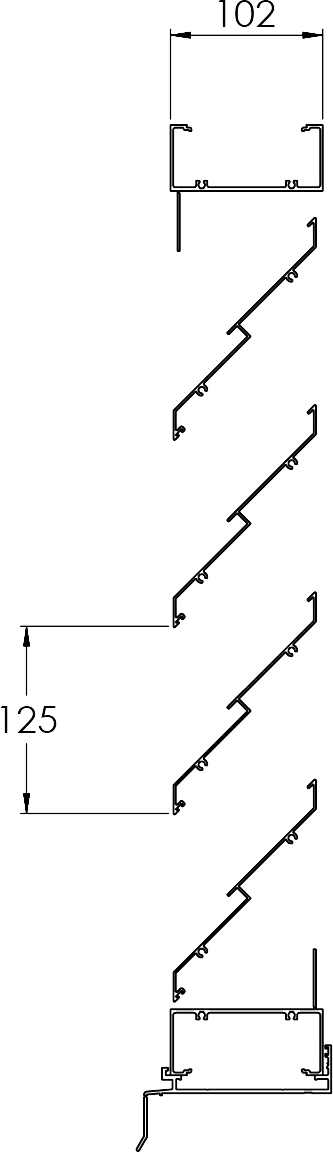

Versatile extruded aluminium louvres with weather lip
Average Rain Defence
Effective Rain Defence
Aerodynamics
Free Open Area
Coefficient of Discharge
Effective Aerodynamic Area
Depth
Pitch
Max span
Weight

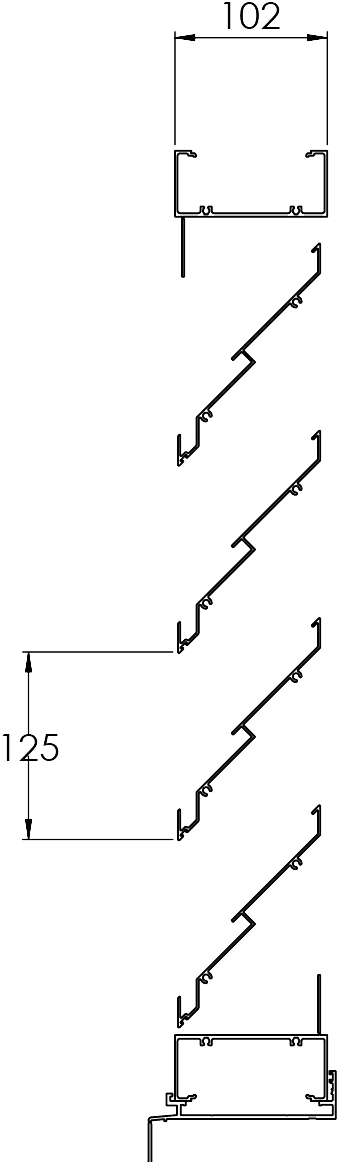

Drainable extruded aluminium louvres
Two-stage extruded aluminium louvres
Selecting the right louvreinvolves these steps.
To select the right performance louvre for your project design: 1) The mechanical engineer defines the required volume flow rate (m ³/s) for mechanical plant or passive ventilation dictated by the mechanical equipment behind the louvres. 2) Mechanical engineer defines the maximum allowable pressure drop across a louvre before fan performance suffers. 3) The architect and engineer then balance the louvre façade area (m2) against the pressure drop requirements, required rain resistance, and aesthetics to get a mutually workable outcome. 4) Finally you can then specify the louvre that works for your design aesthetically and achieves the performance classification required for both aerodynamics and rain defence using the Australian Standard AS4740:2000 classification system. Please note: louvre performance is proportional to the design airflow. For example, the higher the air velocity, the lower the rain defence.
Health
Education
Commercial
Projects will be delivered in a timely manner, be on specification, engineered to Australian standards and finished to the highest quality.
Should you require samples, we offer up to 3 product samples free of charge. Special colour requests POA.
Reach out today to discuss your facade solution requirements; we would love to hear from you.
